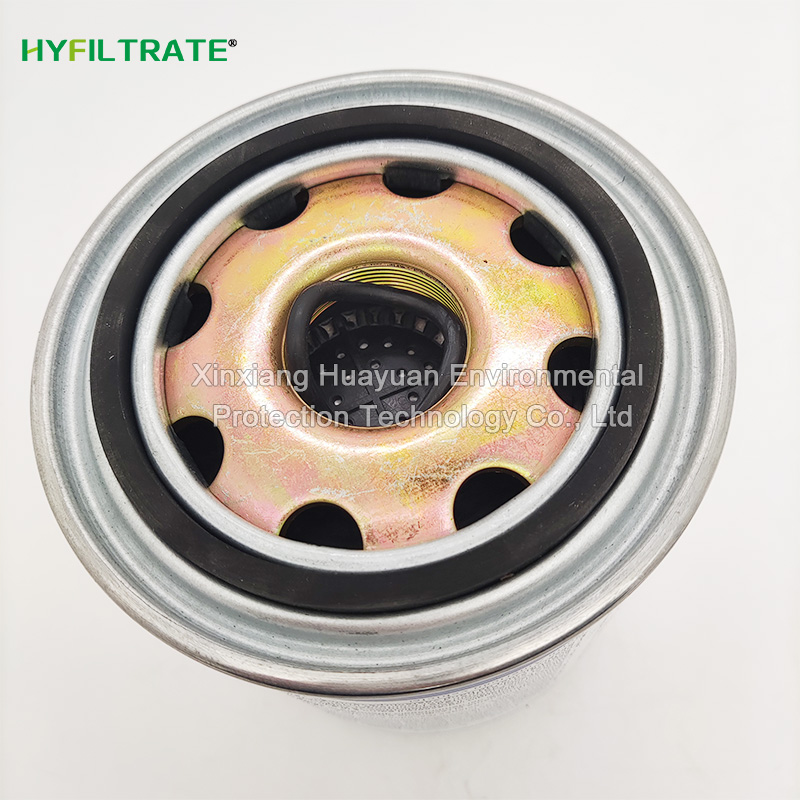

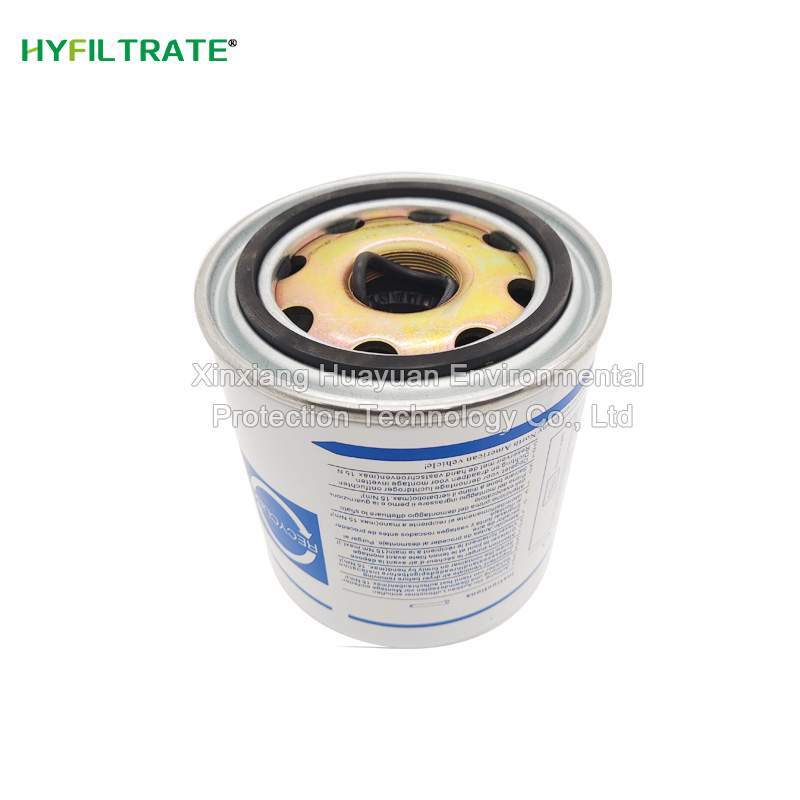

Replace MANN 432 410 2227 air compressor Filter Element

1. Core performance

Filtering accuracy: Covering the range of 1-25 μ m, it can effectively intercept solid particles and gel like pollutants in hydraulic or lubrication systems

Pressure resistance strength: capable of withstanding a maximum pressure of 21.0MPa, suitable for high-pressure hydraulic systems

Flow characteristics: large flow rate per unit area, reduced pressure, and reduced system energy consumption

2. Material and Structure

Filter material: Made of composite materials such as glass fiber and metal mesh, it combines high filtration efficiency and mechanical strength

Structural design: Folding filter layer structure, increasing filtration area, high dust holding capacity, and extending service life

3. Environmental adaptability

Temperature range: Can work stably in an environment ranging from -30 ℃ to+110 ℃

Media compatibility: Suitable for various working media such as hydraulic oil, emulsion, water ethylene glycol, etc

4. Certification and Standards

Tested according to international standards such as ISO 2941 (fracture resistance) and ISO 2942 (structural integrity)

Some models have a filtration ratio of β x ≥ 100, meeting the requirements of high definition cleanliness

5. Application scenarios

Mainly used for hydraulic systems or lubrication systems in the fields of engineering machinery, power equipment, petrochemicals, etc

Can replace imported brand filters such as PALL and HYDAC
