Brand: HYFILTRATE
Model: N15DM002 1251590
Filtration accuracy: 10um
External diameter: 260mm
Length: 254mm
Filter media: Hydraulic oil, lubricating oil, glycol, water
Filter element type: Membrane filter cartridge
Country of origin: Xinxiang, Henan, China

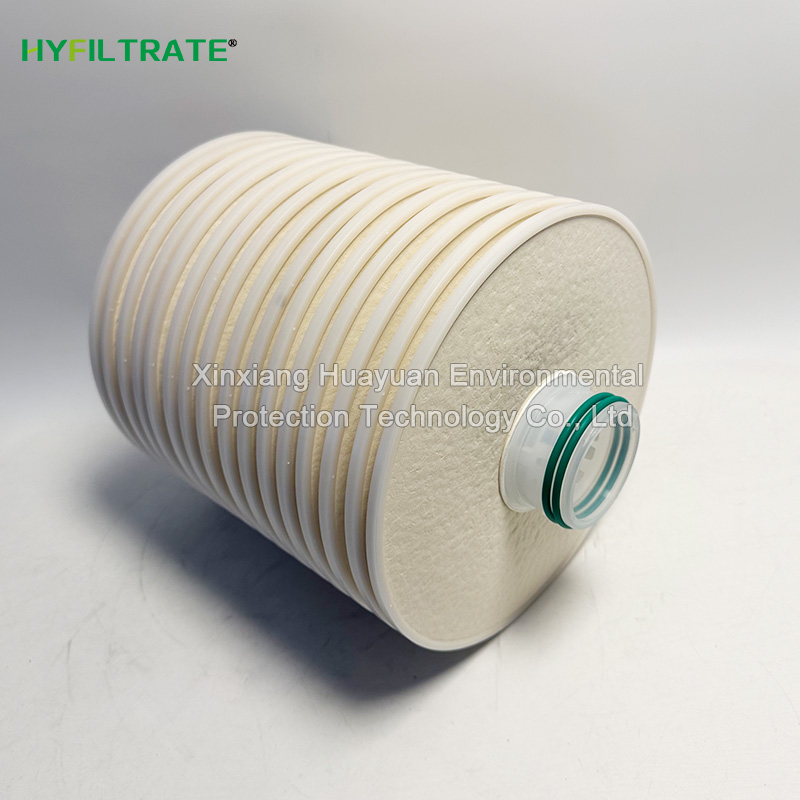

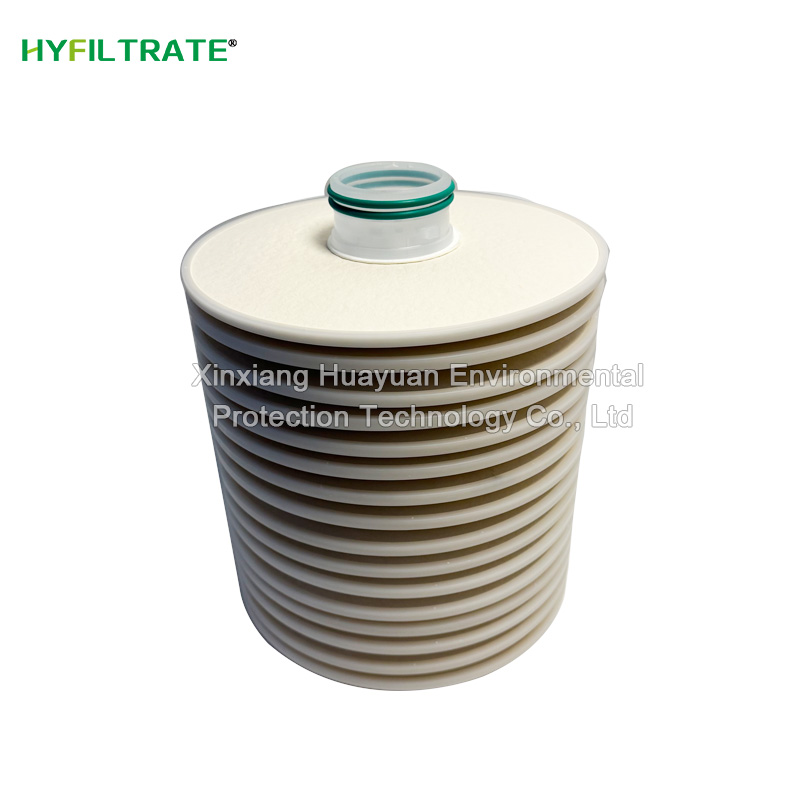

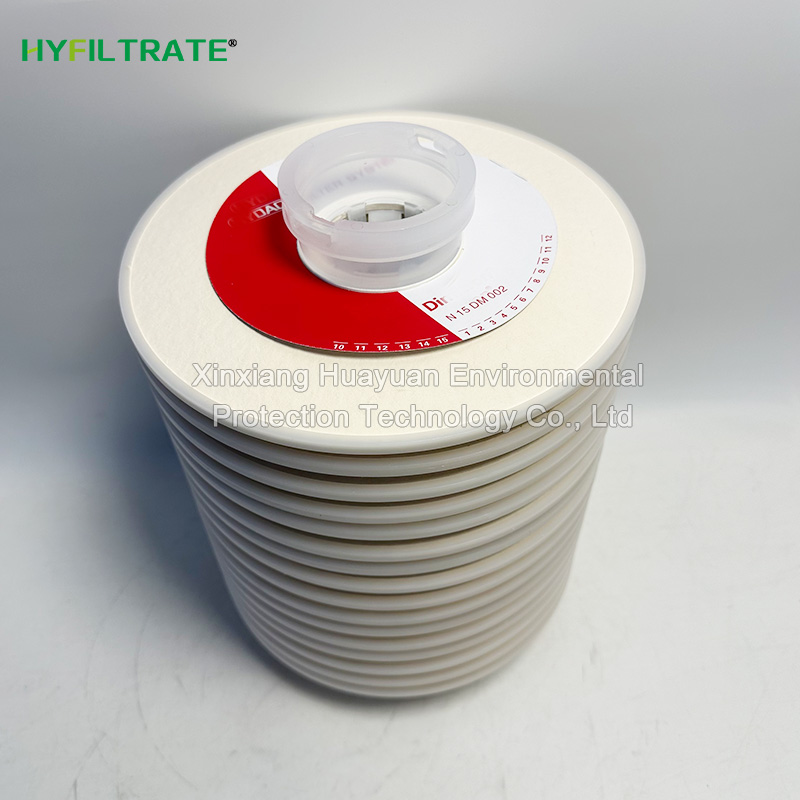

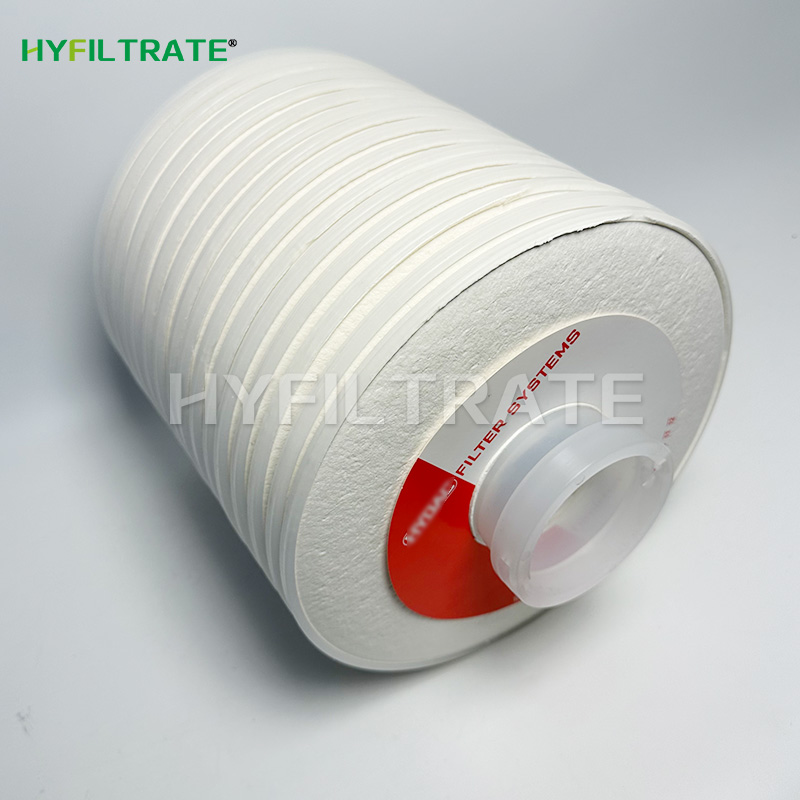

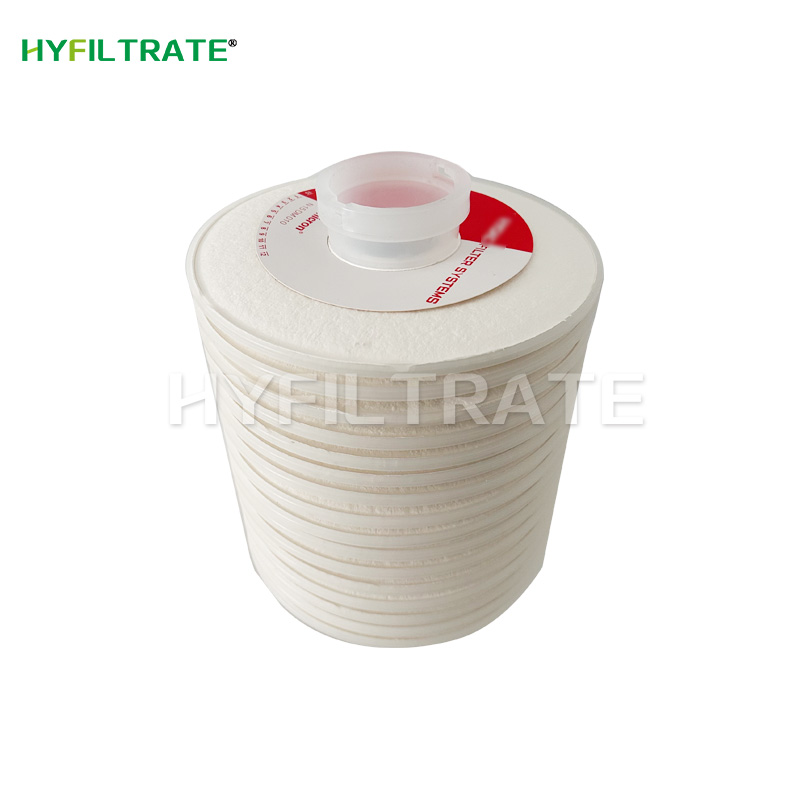

The HYDAC N15DM002 1251590 hydraulic Filter Element is made of high-quality wood pulp paper compression filter material, which has the characteristics of high filtration accuracy and large filtration area. It can be used to filter hydraulic oil, lubricating oil, emulsion and other media, and is used in metallurgy, power, chemical industry, medicine, papermaking, mechanical processing and many other fields.
The filter elements of the Dimicron series have been specially developed for:
1. filtering ultra-fine solid particlecontamination and
2.removing oil degradation products
from hydraulic and lubrication oils in the bypass flow.
The elements can also be used when
there is free water in the hydraulic
fluid and remove some of the water
N15DM002
N15DM005
N15DM010
N15DM020
N15DM030
on retention capacity in
metalworking applications
~ 4,000 g
Contamination retention
capacity with iron oxide
~ 2,400 g
Contamination retention capacity in acc.
with ISO 16889 with ISOMTD
~ 500 g
Water retention capacity ~ 1,000 ml
Filtration ratings 2 µm, 5 µm, 10 µm, 20 µm, 30 µm
ßx
values > 1000
Permitted fluid temperature -10 to 80 °C / 14 to 176 °F
Storage temperature 5 to 40 °C / 41 to 104 °F
Filter material Cellulose
Sealing material FKM (FPM, Viton®)
Other materials Standard: polypropylene
Optional: polyamide
