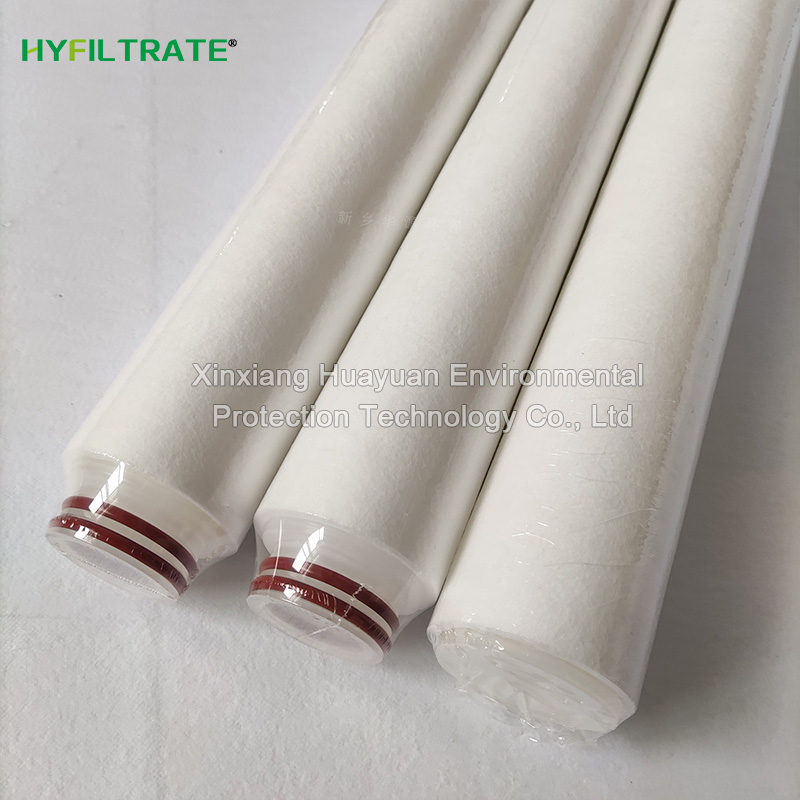

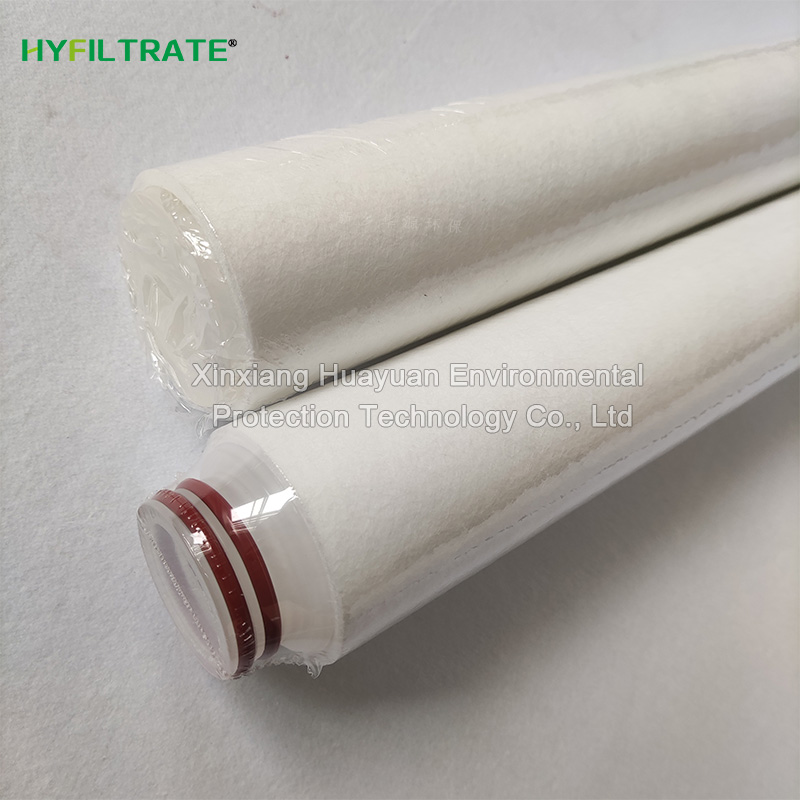

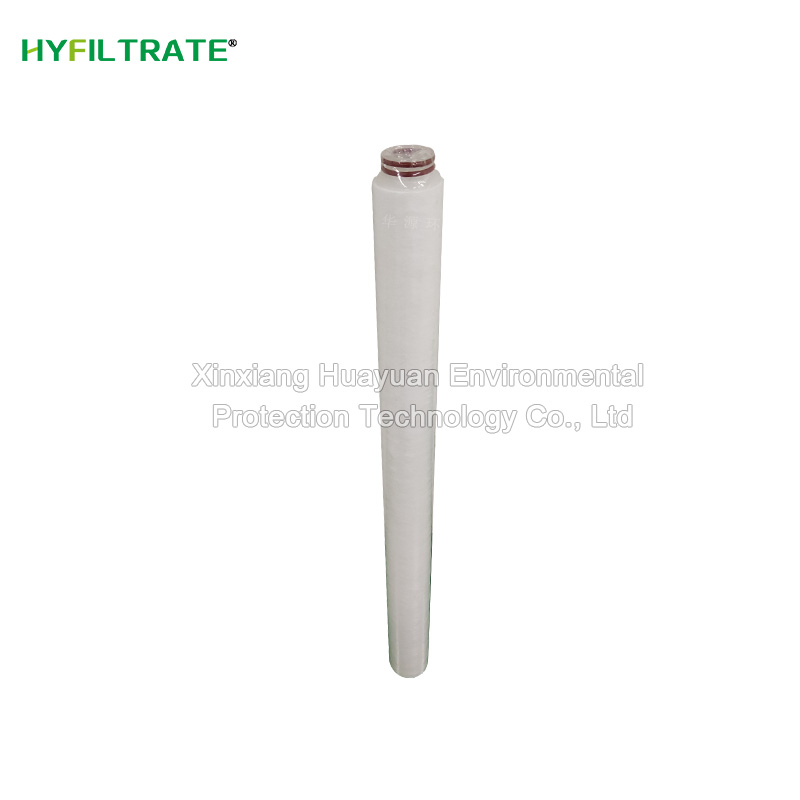

CLR10-30-M3E water filter cartridge

The CLR10-30-M3E water filter cartridge has the advantages of high filtration accuracy, high flow rate, low resistance, uniform structure, and good air permeability. It has a large capacity for dirt absorption and is made of additive free polypropylene fibers that are not easily detached. It has good chemical compatibility, high temperature resistance, and corrosion resistance, and is suitable for various industrial scenarios.The characteristics of CLR10-30-M3E water filter cartridge are as foll


Basic Barameters

Brand: HYFILTRATE

Model: CLR10-30-M3E

Filtration accuracy: 1-100μm

Outside diameter: 63mm

Inside diameter: Standard size

Total length: 765mm

Filter media: Polypropylene (PP) melt blown material

Filter element type: Water filter element

The CLR10-30-M3E water filter cartridge has the advantages of high filtration accuracy, high flow rate, low resistance, uniform structure, and good air permeability. It has a large capacity for dirt absorption and is made of additive free polypropylene fibers that are not easily detached. It has good chemical compatibility, high temperature resistance, and corrosion resistance, and is suitable for various industrial scenarios.

The characteristics of CLR10-30-M3E water filter cartridge are as follows:

Pure Material: Made from polypropylene as raw material, it is wound with continuous polypropylene long fibers through melt spraying process, without additives, and the fibers are not easy to fall off, avoiding secondary pollution.

Excellent filtration performance: high filtration accuracy, uniform structure, and efficient interception of pollutants. At the same time, it has excellent breathability and low resistance, ensuring a large flow rate while maintaining low pressure loss.

Strong pollutant absorption capacity: With a large filtration area, it can accommodate more pollutants, has a long service life, and can reduce the frequency of replacement.

Good chemical compatibility: It has good acid and alkali resistance and high temperature resistance, and can be used for various fluid media that need to be treated in environments ≤ 65 ℃. In addition to ordinary water filtration, it can also be used for filtering some fluids with chemical properties.

Wide application scenarios: Suitable for water filtration needs in many industries such as metallurgy, automotive, power, chemical, papermaking, shipbuilding, etc.


Technical Parameter

The technical parameters of CLR10-30-M3E water filter cartridge are roughly as follows

Filter material: Polypropylene.

Filtering accuracy: 3 μ m.

Nominal pressure: ≤ 0.5MPa.

Working temperature: ≤ 60 ℃.

Length: 30 inches.

Interface form: flat pressure or non-standard customized interface, etc.

Applicable pH range: 1-13.

Maximum pressure difference: positive 0.4MPa.


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
