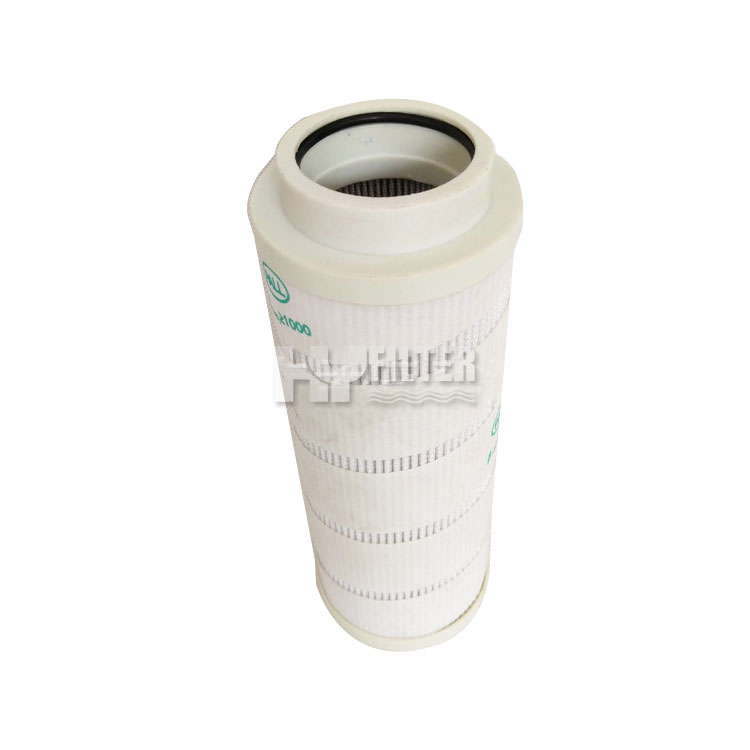

0110R010ON high quality hydraulic oil glass fiber folding filter element

The hydraulic oil filter element is used in the oil circuit of the hydraulic system to remove the worn metal powder and other mechanical impurities in the hydraulic system to keep the oil circuit clean and prolong the life of the hydraulic system. HUAYUANFILTER0110R010ON hydraulic oil filter element uses high-quality glass fiber, which is corrosion resistant, strong in dirt holding capacity, good filtering performance, guarantees the service life of the product, and maintains the normal operatio


Basic Barameters

Brand: HUAYUANFILTER

Model: 0110R010ON

Filtration accuracy: 1μm~100μm

External diameter: Standard

Length: Standard

Filter media: Hydraulic oil, mineral oil, lubricating oil, gear oil, phosphate ester hydraulic oil, etc.

Filter element type: Pleated filter element

Country of origin: China

The hydraulic oil Filter Element is used in the oil circuit of the hydraulic system to remove the worn metal powder and other mechanical impurities in the hydraulic system to keep the oil circuit clean and prolong the life of the hydraulic system. HUAYUANFILTER0110R010ON hydraulic Oil Filter Element uses high-quality glass fiber, which is corrosion resistant, strong in dirt holding capacity, good filtering performance, guarantees the service life of the product, and maintains the normal operation of machinery and equipment.

HUAYUANFILTER is a professional manufacturer of filter elements in China. It can provide import and export business for many countries. The product models are complete and can also be customized according to your requirements. Welcome to consult and cooperate.


Features

1. Strength requirements, production integrity requirements, bearing pressure difference, bearing installation external force, bearing pressure difference alternating load

2. The smoothness of oil flow requirements, flow resistance characteristics

3. Resistant to a certain high temperature and compatible with the working medium

4. The filter layer fibers cannot be displaced or fall off

5. Carry more dirt

6. Normal use in high altitude and cold areas

7. Fatigue resistance, fatigue strength under alternating flow

8. The cleanliness of the filter element itself must meet the standard


Technical Parameter

model0110R010ON
 Types ofHydraulic oil filter element
sizeStandard, customizable
 Operating temperature-25℃--110℃
 work pressure21bar ~ 210bar
 MaterialFiberglass, high-quality stainless steel
Working mediumMineral oil, emulsion, water-glycol, phosphate ester hydraulic   oil, etc.
 Filtration accuracy1μm-100μm
Life3500h-4000h
Advantage1. Easy to remove pollutants 2. Large flow area 3. Small   pressure loss 4. Simple structure 5. Light weight 6. Uniform filter material
packIn PP bag, carton, wooden box or according to your   requirements
Mailing methodSea, air, express

Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
